Ceiling filters
high performance
filtex

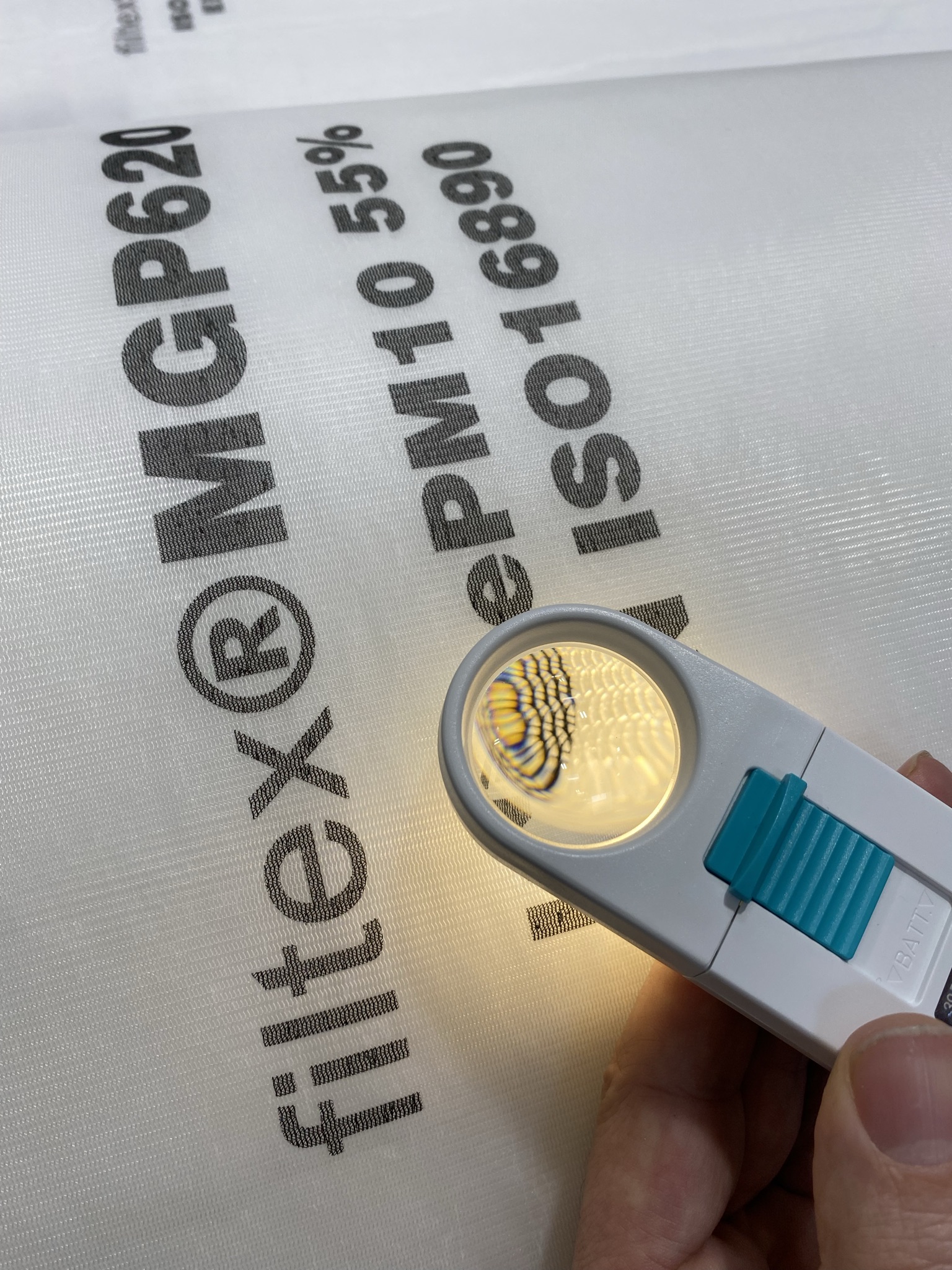

Ceiling filter filtex MGP620:
Progressively condensed, thermally bounded high- tech-multi-layer material with high mechanical stability in the fibre composite. Incredibly excellent filtration efficiencies and high dust accumulation ability. Besides, the filter medium is impregnated with an adhesive ingrediant to avoide dust penetration due to air vibrations. A filter tricot–waving on the air outlet side provides additional safety against dust penetration. AFTL - Test Champion (AIR FILTER TESTING LABORATORIES INC. , Kenutcky - USA)

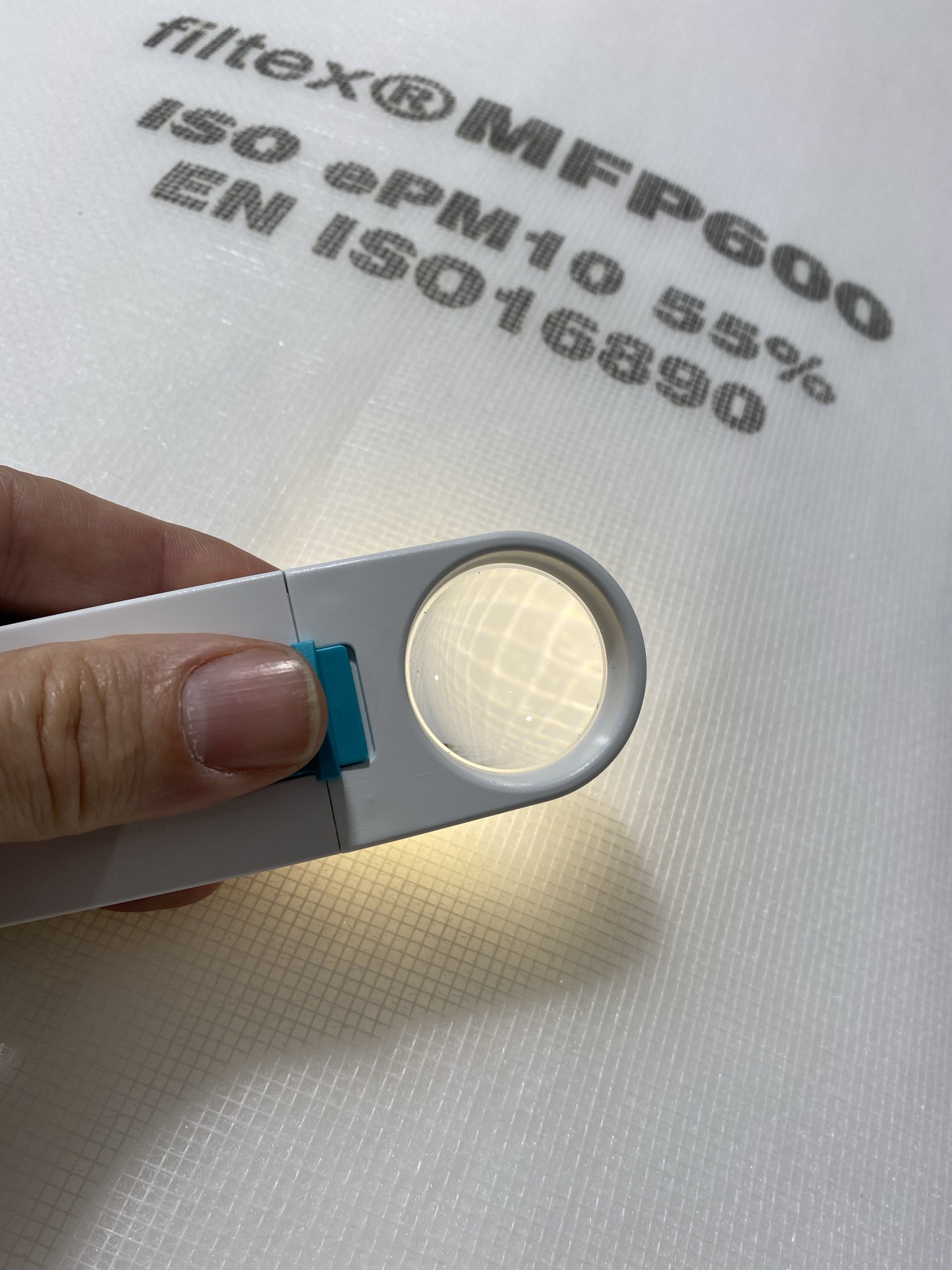

Ceiling filter filtex MFP600:
Progressively condensed, thermally bounded high- tech- material with high mechanical stability in the fibre composite. The fleece construction with a particularly abraded and condensed pure air side proves high filtration efficiencies and high dust accumulator ability. The filter has an additional special fine fibre filter layer. A grid on the air outlet side provides high shape stability.
On request....
Find full filtex® program in our swiss - website (german language)
Klick on to the swiss-flag-ikon on the website header

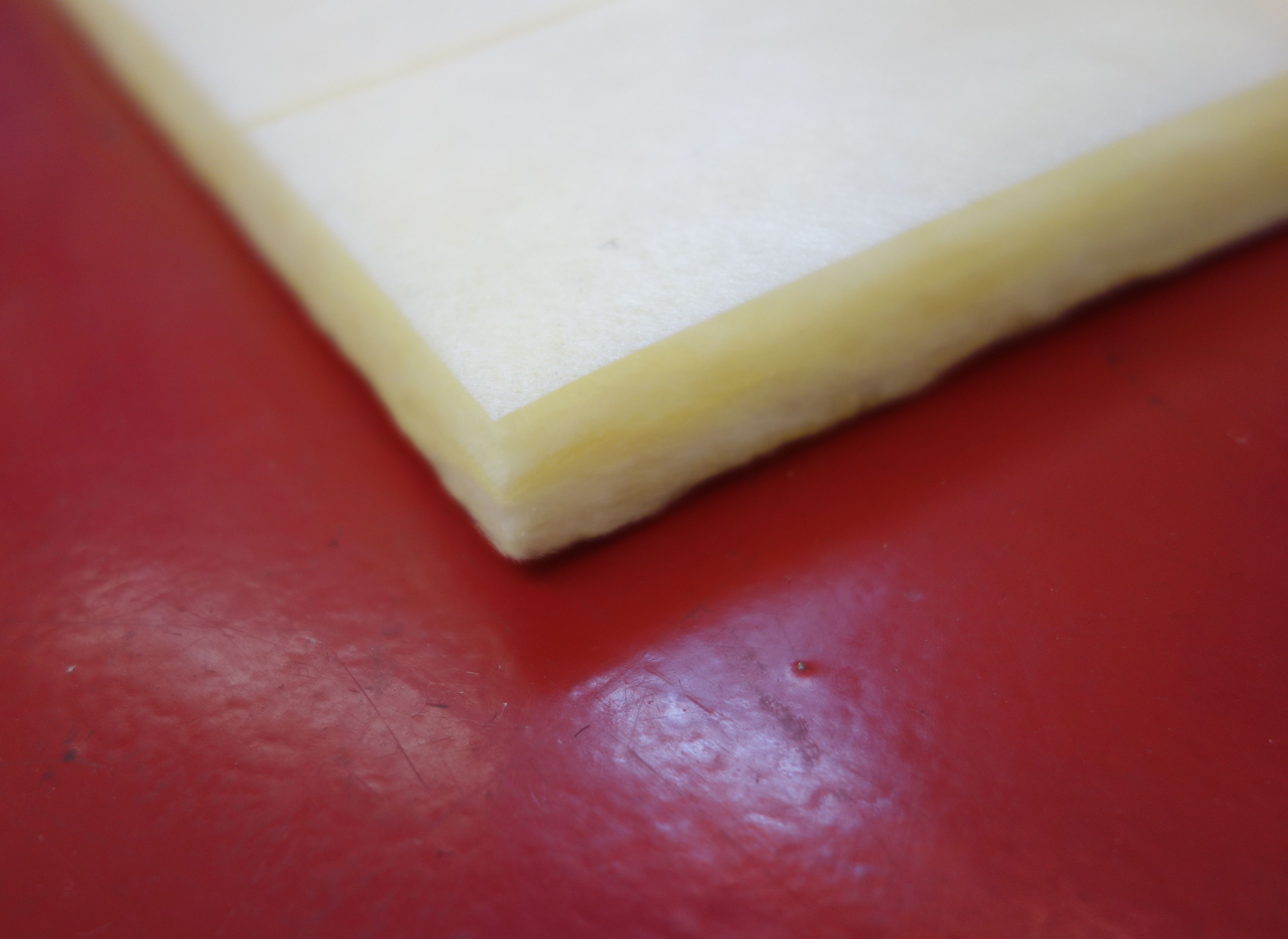

Ceiling filter filtex MGT600:
For high temperature applications.
Premium Quality up to 200°C.
Appication:
High-Quality ceiling filters from filtex provide specific characteristics. This aims in clean room conditions especially for surface treatment processes.
Types - Filter classes - Medium:
| filtex MFP600 | M5 (F5), 20mm | filtex®HTL, add. fine fibre layer, supportin grid |
| filtex MGP620 | M5/M6 (F5/F6), 22mm | filtex®HTML, multi layer, AFTL Champion |
| filtex MGT600 | M5 (F5), 19-20mm | filtex®HT, High Temperature Glassfiber |
☼ Energy Saver - Energiesparfilter
Characteristics:
- High performance ceiling filters
- Filter classes EN779:2012 M5-M6
- Optional possible for temperatures up to 200°C
- All dimensions and cuts deliverable in time
- Rolls and special dimensions
- Technical Data see TECHDOC or on request
